一、高溫引伸計產品簡介：

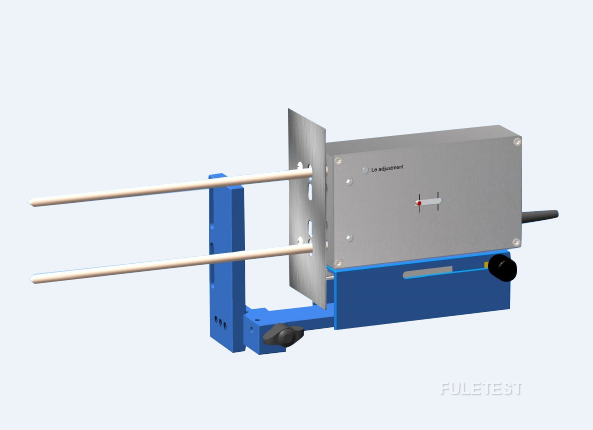

1600度/1700度高溫引伸計配合高溫拉伸試驗機用于各種材料高溫力學的應變測試?？膳銯LWK1200度高溫爐\1600度高溫爐\1700度高溫爐\真空高溫爐等使用。The MFHT 5 has been conceived as a highly accurate, sturdy measuring device for hot tensile tests in a folding furnace. 2 initial gauge lengths are offered as standard. Le 25 mm and Le 50 mm can be adjusted quickly and fast by turning over the feeler arms. Due to its extremely low activating force, the unit enables the testing of highly sensitive samples which permit only the lowest surface pressures.

三、高溫引伸計主要技術規格

Accuracy class準確等級                  EN ISO 9513 0.5

Measurement principal測量原理         strain-gauge full bridge全橋應變

Travel 變形量                              +/- 5 mm

Activating force初始力                      ≈ 10 cN

Contact pressure feeler arms觸桿接觸壓力     ≈ 200 cN

Indication error (v. A.)*精度                    0.5 %

Indication error *分辨力                      1,5 μm

Initial gauge length標距                 25 mm and 50 mm

Error of initial gauge length標距誤差          +/- 0,1 mm

Rated bridge resistant額定橋電阻             350 Ω

Nominal sensitivity敏感度                   2 mV/V

Recommended voltage supply建議電壓       max. 10 V (5 kHz)

Standard feeler arms 標準陶瓷桿        Ceramic (Al23) up to 1700 °C

Other feeler arms (length and shape of edge )     on request

Other initial gauge lengths on request

Weight 0.7 kg

Weight with clamping device 1.2 kg

關于1600度/1700度高溫引伸計其他特殊需求聯系馥勒工程師。
